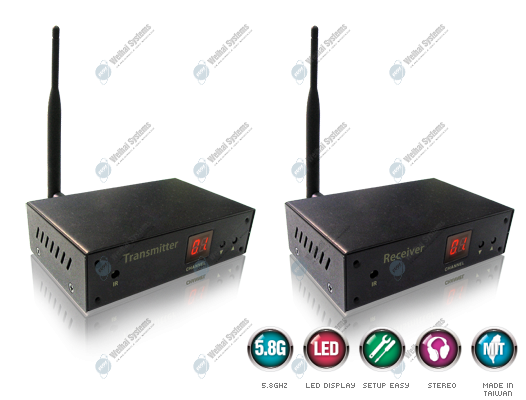

TR-5801 5.8GHz Wireless AV Sender 10mW

Penetrating Walls , Floors , Ceilings , Interference Free

Powerful 5.8 GHz wireless audio/video sender. Enable crystal clear video and stereo audio signal received from far away CCTV camera / satellite TV / digital TV set top box / DVD & BD player. Available for any AV output device on 5.8GHz band to keep it interference free from 2.4GHz band and an external & directional dipole antenna providing excellent transmission distance up to 80 meters (clear line of sight). For longer distance, you can connect to our optional & powerful Antennas.

  • Worldwide 5.8GHz ISM Band

  • No Interference from Crowded 2.4GHz Band

  • Transmit any Audio/ Video Signal by Wireless

  • Compatible with both NTSC/ PAL

  • Digital LED Channel Display

  • 7-Channel Selectable

  • Easy Installation and Setup

  • Excellent to penetrate Walls, Floors, Ceilings,--- and so on.

  • Antenna Replaceable

  • Made in Taiwan

Model TR-5801
Power Output10mW
Frequency Range5725 ~ 5875 MHz
Channel7-Channel Selectable
Display ModeDigital LED Channel Display
Antenna TypeSMA (F)
IR Remoteoption
Power SupplyDC 9V 300mA
Dimension118mm(L) x 86mm(W) x 32mm(H)
Power Supply DC 9V 300mA
Dimension118mm(L) x 86mm(W) x 32mm(H)

Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
