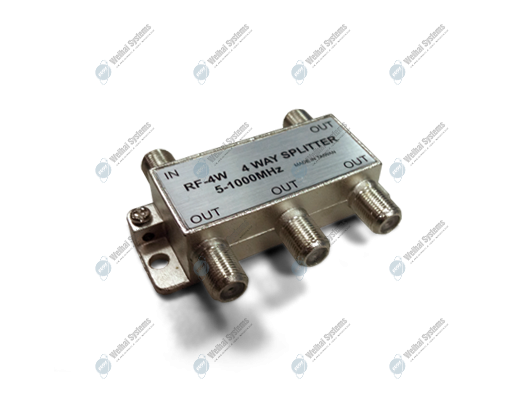

RF-4W 4-Way RF Splitter

4 in 1 out / 1 in 4 out for RF signals

RF-4W is a broadband RF splitter with professional quality. For CCTV system, it also used as RF combiner to combine all RF signals. The differences from others are low-loss and no interference.

Excellent quality with full frequency range 5 - 1000MHz
Hight isolation
Low Insertion Loss / no interference
Excellent performance for RF signals
Balanced (Equal Loss on All Ports) Design

Model	RF-4W
Insertion Loss (dB)	7.5
Isolation (dB)	24
Connectors (all ports)	"F" Female
Impedance (all ports)	75Ω
Frequency Range	5-1000 MHz
Dimension	71mm(L) x 50mm(W) x 20mm(H)
Weight	90g
Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
