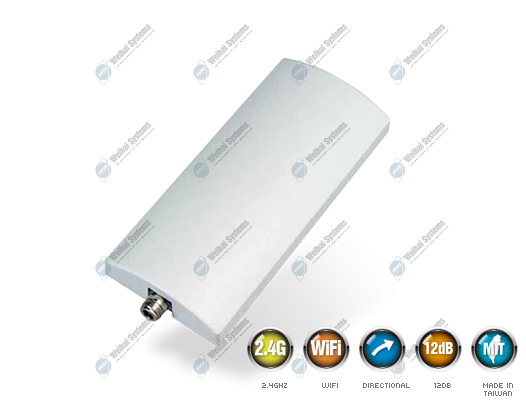

PA-2412 2.4GHz Panel Antenna 12dBi

2.4G Directional Antenna for Transmitter or Receiver

The PA-2412 Panel Antenna is a 12 dBi directional wireless antenna for the 2.4 GHz band.

  • Suitable for A/V wireless transmitter/receiver (TR-2020,TR-1020,TR-1020B,TR-500,TR-100,WS-240 )

  • Support 2.4 GHz wireless AP, wireless router

  • High-gain 12 dBi to get excellent quality

  • Extension cable with different connectors to match any wireless device

  • Easy Installation

TypePanel Antenna
Frequency2.4~2.5 GHz
Gain12 dBi
ConnectorN Female
Wave Impedance50 ohm +/- 5 ohm
Dimension215mm(L) x 90mm(W) x 30mm(H)

Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
