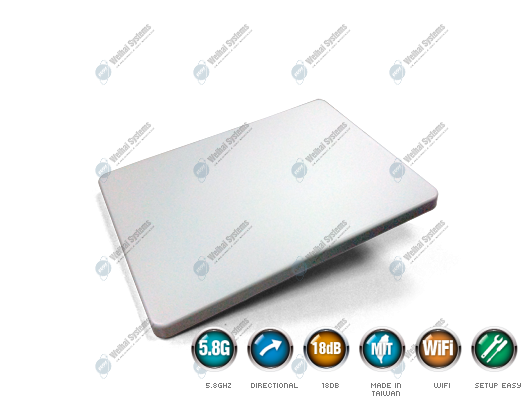

PA-5818 5.8GHz Panel Antenna 18dBi
5.8G Directional Antenna for Transmitter or Receiver
This is professional & directional antenna in reasonable price and suitable for indoor/outdoor application.
|
Model | PA-5818 |
Type | Panel Antenna |
Frequency | 5.725~5.875 GHz |
Gain | 18 dBi |
Connector | N Type Female |
Wave Impedance | 50 ohm +/- 5 ohm |
Polarization | Linear |
Dimension | 270mm(L) x 205mm(W) x 15mm(H) |
Weight | 751g |
Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice. |
