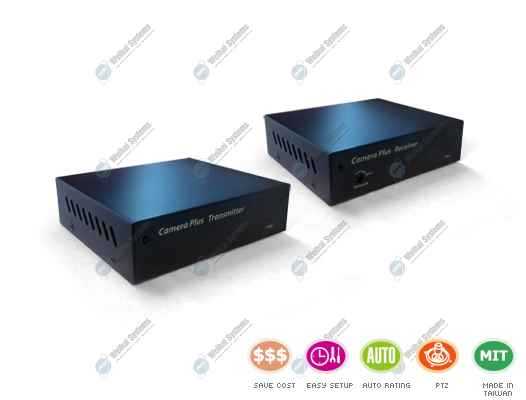

CPS-100D 1 Camera + RS485 Transmission

One Video with RS485 Data Transmission

This device is an excellent transmission kit to transmit video with RS485 data via one coaxial cable. No matter you plan to install one new PTZ camera or replacing fixed camera to PTZ camera only one pair via existing cable is done. It takes seconds to connect controlling wires to PTZ controller. Simple and easy for you to install PTZ camera.


  • Video and RS485 over a coaxial cable

  • Support all PTZ camera

  • Long distance transmission

  • Easy installation to save much cost of cable, labor and time

ModelCPS-100D
Video Channel1
RS485 Baud RateAuto
RS485 ProtocolAuto
Temperature Range-10°C~60°C
Transmitter
Video Input1.0Vp-p (75 ohm)
Data LEDGreen
RS485 ModeSimplex (Receiver)
Power Consumption1.5W
Power RequirementsDC9~12V / 120mA
Dimension102mm(L) x 110mm(W) x 30mm(H)
Weight260g
Receiver
Video Output1.0Vp-p +/- 0.2Vp-p (75 ohm)
Data LEDRed
RS485 ModeSimplex (Transmitter)
Power Consumption1W
Power RequirementsDC9~12V / 80mA
Dimension102mm(L) x 110mm(W) x 30mm(H)
Weight262g

Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
