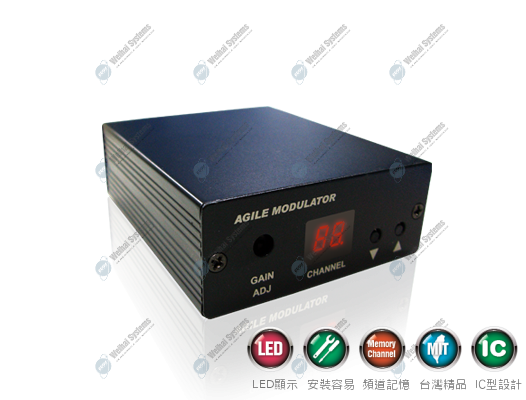

AVM-138 高頻電視頻道產生器

擴增自己需要監視或影音頻道

AVM-138是專為有線電視(CATV)而設計的調變主機。 善用既有的CATV線路及未使用的無訊號空頻道,藉由AVM-138可將攝影機訊號、衛星訊號和監視系統… 等任何A/V訊號全部整合在有線電視系統中。





  • Multiple System selectable ( NTSC, PAL I, PAL B/G, PAL D/K)

  • Modulate A/V signal to your selected TV channel.

  • Any analog A/V device is available : DVD player, VCR, Satellite Receiver, CCTV camera.

  • View video source and regular channels on the same TV.

  • 90 dB signal output powerful enough for long cable runs.

  • Made in Taiwan

ModelAVM-138
Display ModeDigital LED Channel Display
Video SignalNTSC, PAL B/G, PAL I and PAL D/K
Video Input1.0Vp-p for 87.5% modulation
Audio InputPre-emphasis 75us.
RF output Strength90 +/- 5 dbuv
Channel MemoryLast channel memory
ConnectorAudio input / Video input (RCA connector), RF out (F connector)
Power RequirementDC7.5V - DC12V/100mA
尺寸115 公厘(長) x 76 公厘(寬) x 31 公厘(高)
淨重172 克

備註: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
