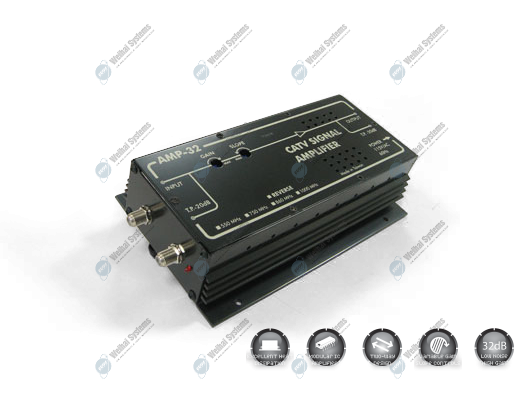

AMP-32 寬頻RF訊號放大器

適用各種不同訊號 IC雙微調設計

採用IC雙微調 (Gain,斜率)設計,適用於各種寬頻系統如CATV,數位電視,公播系統,監視系統等.全頻增幅 32 db的強力推手,防熱效果佳, 品質傲視群倫。





  • Aluminum chassis provides excellent heat dissipation

  • Hybrid module design

  • Built-in Variable Gain and Slope controls

  • Input Frequency: 50~860MHz

  • Maximum Gain: 32db

  • Input & Output Test Point: -20dB Gain / Slope Control range: 0 ~ -20db continuously adjustable

  • Connector: Input / Output 75Ω impedance

  • Made in Taiwan

ModelAMP-32
Input Frequency 50~860MHz
Maximum Gain32db
Input & Output Impedance75Ω
Input & Output Test Point-20dB
Gain / Slope Control range0 ~ -20db continuously adjustable
ConnectorInput / Output 75Ω impedance
Power RequirementAC 110 ± 10% or AC 220 ± 10% VAC
Power Consumption10 Watts
尺寸200 公厘(長) x 120 公厘(寬) x 52 公厘(高)
淨重1.092 公斤

備註: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
