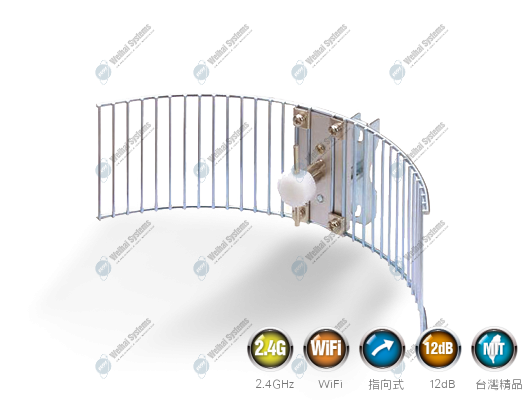

GR-2412 2.4GHz 格狀天線 12dBi

2.4GHz高增益12dBi廣角天線

GR-2412為高增益12dBi廣角天線,天線主體在戶外可以使用,不需擔心會受到天氣氣候影響而導致內部零件受損,內部不會滲水潮溼防水效果極佳。適用於大範圍的點對點訊號連線,或是做開放訊號接收,可安裝在鐵桿或牆壁上,常被使用在單點或多點的訊號傳送/接收.





  • Suitable for A/V wireless transmitter/receiver (TR-2020,TR-1020,TR-1020B,TR-500,TR-100,WS-240 )

  • Support 2.4 GHz wireless AP, wireless router

  • High Gain 12 dBi to get excellent quality

  • Extension cable with different connectors to match any wireless device

  • Easy Installation

型號GR-2412
天線Grid Antenna
頻率2.4~2.5 GHz
增益12 dBi
連接頭SMA Female
Beam Width H9.5 degrees
阻抗50 ohm +/- 5 ohm
尺寸275 公厘(長) x 125 公厘(寬) x 90 公厘(高)
淨重200 克

備註: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
