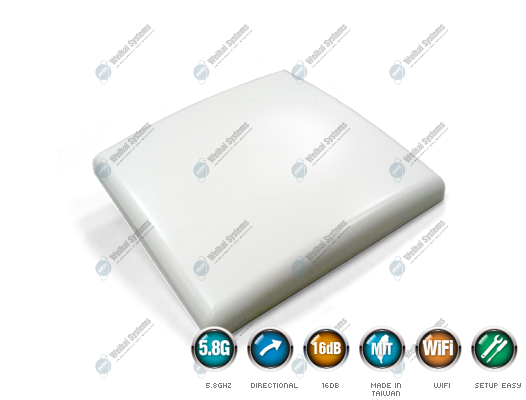

PA-5816 5.8GHz Panel Antenna 16dBi
5.8G Directional Antenna for Transmitter or Receiver
 |
|
This is professional & directional antenna in economical price and suitable for outdoor application.
 |
|
| Model | PA-5816 |
| Type | Panel Antenna |
| Frequency | 5.725~5.875 GHz |
| Gain | 16 dBi |
| Connector | N Type Female |
| Wave Impedance | 50 ohm +/- 5 ohm |
| Polarization | Linear |
| Dimension | 190mm(L) x 190mm(W) x 60mm(H) |
| Weight | 353g |
Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice. | |
