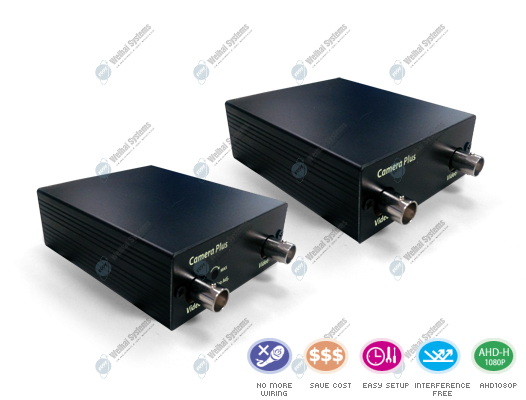

CPS-101AHD 2 AHD-1080P cameras by one cable

Adding new AHD-1080P camera without any new cable. Just one pair for 2 AHD cameras by existing cable.

CPS-101AHD a big challenge to keep the CCTV system working in good condition. If your customer wants to add AHD cameras, the difficulty is more than the beginning. By CPS-101AHD, you don't need to run any new cable. Using the original cable to transmit both old camera and new AHD camera is done.


  • One pair for 2 AHD-1080P cameras by one cable

  • Both videos are excellent without interference

  • Flexible application to match the analog & AHD cameras

  • Saving much cost of cable, labor and time

ModelCPS-101AHD
Channels2 Channels
Video ResolutionAHD-H 1080P / AHD-M 720P / 960H / CVBS
Temperature Range-10°C~60°C
Transmitter
Video Input1.0Vp-p (75 Ω)
Power LEDRed LED
Power Consumption0.6 W
Power RequirementsDC 9~12V / 50mA
Dimension115mm(L) x 76mm(W) x 31mm(H)
Weight170g
Receiver
Video Output1.0Vp-p ± 0.2Vp-p (75 ohm)
Power LEDGreen LED
Power Consumption1.6 W
Power RequirementsDC 9~12V / 130mA
Dimension115mm(L) x 76mm(W) x 31mm(H)
Weight180g

Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
