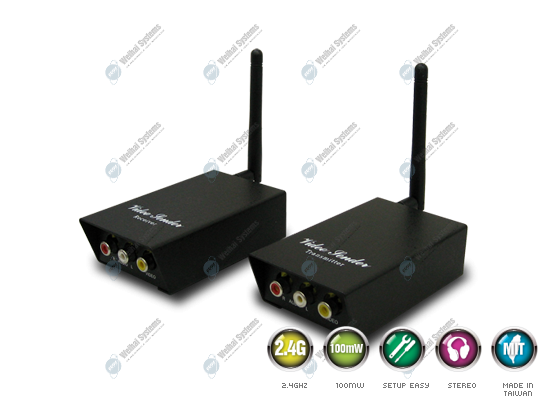

TR-100 2.4GHz Wireless AV Sender 100mW
2.4GHz Wireless Transmission
The powerful microwave AV sender is designed at 2.4GHz with 10 channels by one watt high output power wireless transmitting crisp clear video/audio signal throught walls or cellings. Basic version of 2.4GHz wireless audio/video sender. Transmit clear video and stereo audio signal for CCTV camera / satellite TV / digital TV set top box / DVD & BD player and any AV output device. Including external dipole & directional antennas to provide better transmission quality up to 200 meters.(clear line of sight)
|
Model | TR-100 |
Power Output | 100mW |
Frequency Range | 2400~2483 MHz |
Channel Selection | PLL, Synthesizer, 4CH |
Video-Audio Modulation/Demodulation Type | FM-FM |
Antenna Type | SMA (F) |
Power Supply | Tx: DC 9V 300 mA Rx: DC 9V 300mA |
Dimension | 103mm(L) x 60mm(W) x 30mm(H) |
Weight | 240g |
Remark: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice. |
