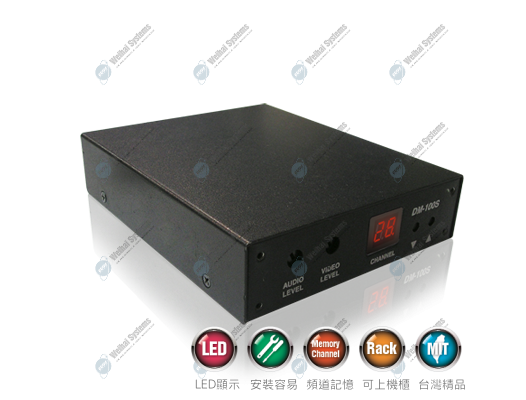

DM-100S 可調式解調變器

將任何RF訊號解調變成AV訊號

DM100S影音解調變主機，是一台兼具專業品質和靈活運用的解調變主機。 無論影 音訊號來自VHF、UHF或有線電視 ( CATV ) 頻道 ( 50.860 MHz )，皆能將您的需 求，整合成統一管理的系統。 配合高品質的MD500調變主機和標準機櫃收納架，是 您解決有線頻道系統的不二好幫手。

• Easy to adjust channel

• Channel memory after power re-supply

• Digital LED Channel Display

• Suitable for CCTV, CATV

• Mounted on 19" rackmount

• Frequency range : 50 ~ 860 MHz

• Improve the transmission quality without noise / interference

Model	DM-100S
Display Mode	Digital LED Channel Display
Video Signal	NTSC, PAL B/G, PAL I and PAL D/K
Input Frequency Range	50-860MHZ
Input Level Range	-5 ~ +30 dbmv
Video Output	1Vp-p +/- 0.2p-p(75Ω)
Audio Output	0.755Vp-p +/-0.2p-p(600Ω)
Noise Figure	10 dB maximum
Connector	Two Audio RCA input, one Video RCA input, one RF input
Channel Memory	Last channel memory
Power Requirement	DC 7.5~12 V / 300 mA
Power Consumption	1.5 Watts
尺寸	161 公厘(長) x 118 公厘(寬) x 32 公厘(高)
淨重	469 克
備註: The picture & specification shown is tested & provided by RD Team. Any information is subject to be changed without notice.
